AV1 Rebreather Monitoring

AV1-R THE PERFECT REBREATHER DIVE MANAGEMENT

RELIABLE AND MOST AFFORDABLE.

The AV1 Classic, was successfully transformed into a reliable rebreather monitoring and management system- the AV1-RM. Ideal as primary or backup, the AV1-RM is the lightest and most affordable intelligent rebreather solution.

Get in Touch

AV1-R THE PERFECT REBREATHER DIVE MANAGEMENT

RELIABLE AND MOST AFFORDABLE.

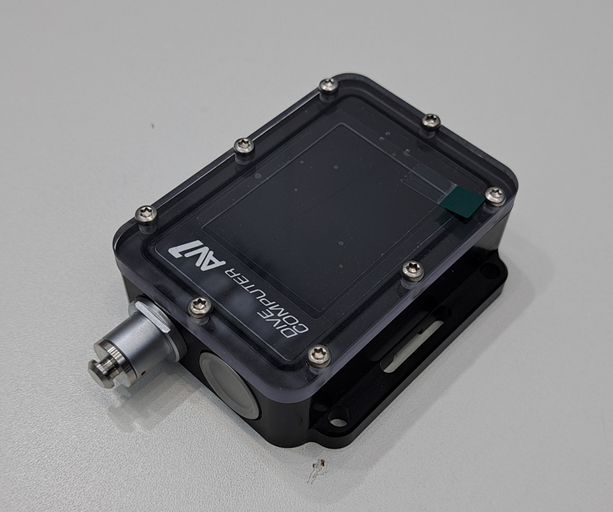

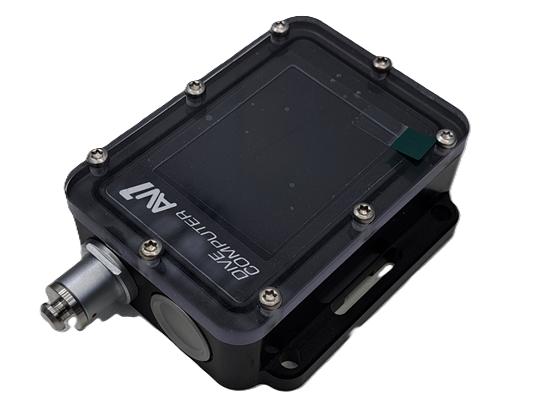

AV1-RM includes the same proven features as AV1 Classic. With fully customizable trimix and multi-mode capability, AV1-RM is the most versatile computer in our lineup. It works as primary or backup SCR or m-CCR monitor, as well as e-CCR backup, and like a standard open circuit computer for technical and recreational diving. With inbuilt Fischer or pin connector, AV1-RM is compatible with any rebreather brand using up to 3 oxygen cells, for easy and pleasant diving anywhere in the world.

Get in Touch

Overview

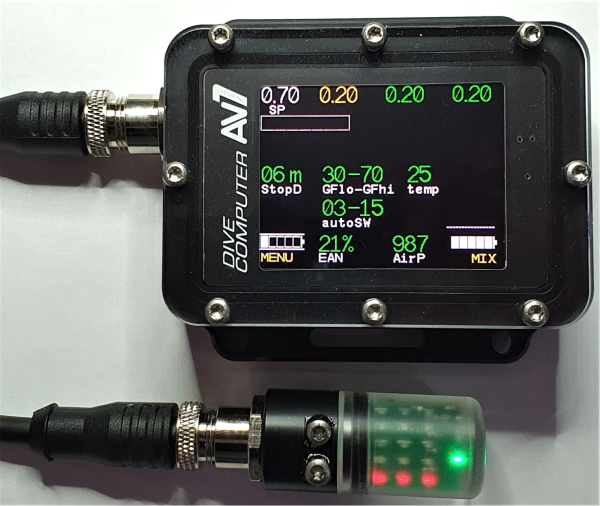

DUAL MONITORING FOR MAXIMUM SAFETY Combine AV1-RM with i-HUD display for complete redundancy. Two independent monitoring systems give you peace of mind and safety on deep rebreather dives.

AV1-RM REBREATHER MONITORING for SCR or m-CCR with Fischer or pin connector computer. Track up to 3 oxygen cells in real-time with color-coded warnings and alerts. Perfect as primary rebreather computer.

i-HUD HEADS-UP DISPLAY Hands-free rebreather monitoring. Critical PPO2 information always in your field of vision. Ultimate back-up system for demanding CCR dives. Lightweight, robust and compact.

Multiple Dive Modes and Screens

OC TECHNICAL OR RECREATIONAL

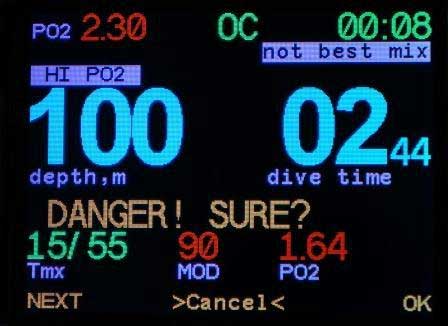

Air, Nitrox vs Trimix up to 8 gases, ceiling, warnings, deco plan, built-in compass. All you need for any type of dive on any depth.

CONTINUOUSLY MONITORING

When accessing any menu item, the main indicators such as depth and time remain visible on screen for uninterrupted dive control.

COMPREHENSIVE DIVE LOGGING

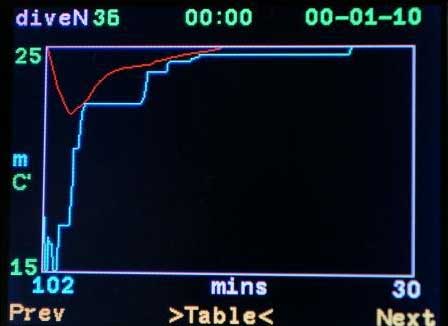

DETAILED DIVE LOGS Stores 100 dives with precise depth, ceiling, and temperature diagrams. Review the entire dive history directly on the screen.

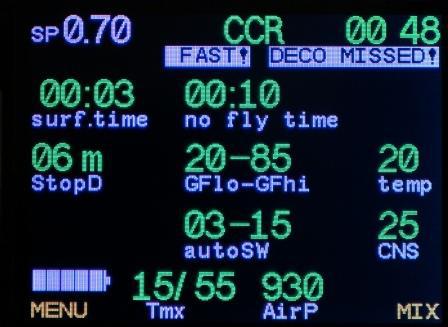

SURFACE DISPLAY

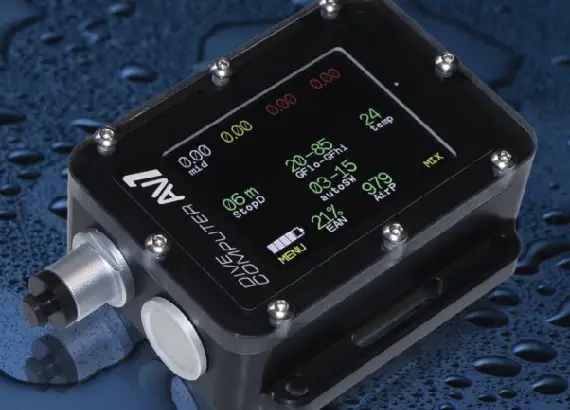

Current time or setpoint and date depending, surface interval, time to fly, warnings, current settings: first stop depth, GF, ambient temperature, setpoint auto-switch depths, current CNS saturation, battery, current gas, and atmospheric pressure value.

AV1-RM MAIN FEATURES

Customized gases for any gas-mix: Air, Nitrox, Trimix, Triox and Heliox

Buhlmann ZHL-16C + Gradient Factor GFhigh and GFlow

8 gases for Open Circuit (OC) and Closed Circuit (CCR)

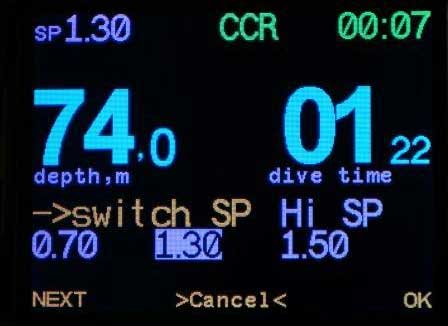

Opportunity to switch between OC and CCR during the dive

Fully customizable features

Inbuilt compass

Inbuilt game - Snake

Dive Planner and Simulator

Logbook - 100 dives.

Two different screens, Tec and Rec modes

Diagram for Dive, deco, temperature

Record and display every 10 seconds of the data from the dive

Tech Specification

The device’s body is made of highly durable Delrin plastics or anodized marine-grade Aluminum.
2.4” Multicolor screen graphic display of high resolution 320×240 with polycarbonate glass protector.
Large piezoceramic buttons with adjustable sensitivity are perfect for any diving gloves.
The maximum tested depth is 200 meters. Maximum current dive depth of 233 meters.
The LiPo accumulator can be charged via a USB-C port or wirelessly (on request).
Compact dimensions: 90x65x28, and a lightweight of 0.27 kg.
